LMTS Series Electric Translation Table Motor Linear Platform Stepper Motor Displacement Electric Control Sliding Table X-axis
- Regular price
- $487.50
Product information
Stepper Motor Translation Table |
||
Model |
LMTS-D |
LMTS-S |
Specification |
253.0*70.0*24.0mm |
253.0*70.0*24.0mm |
Travel Range |
25~100mm(1~4") |
25~100mm(1~4") |
Type Of Actuator |
28BYG-B |
Stepper |
Fastest Speed |
14mm/s |
1.2mm/s |
Weight |
666.5g |
581.4g |
Calculate Resolution |
0.7μm |
0.15μm |
Typical Resolution |
0.7μm |
0.15μm |
Load Capacity |
5kg |
|
Swing Clearance |
/ |
|
Unidirectional Repeat Accuracy |
1μm |
|
Bidirectional Repetition Accuracy |
±10μm |
|
Lead (Thread Pitch) |
0.7mm |
|
Microstep |
≈ 0.22 μm |
|
Rated Voltage |
DC |
|
Rated Current |
0.6 |
|
Recommended Controller |
LMTS-DRIVER |
|
Cable Length |
1m |
|
Material |
Aluminum Alloy, Black Anodized |
LMTS-DRIVER |
|
Motor Output |
|
Drive Voltage |
DC 12V |
Drive Current |
1250mA(Max) |
Drive Type |
12 bit PWM Control |
Control Algorithm |
Semi Closed-Loop Microstepping |
High Resolution Stepping |
LMTS-D (6400 Microsteps Per Revolution (1.8 ° Step Angle Stepper Motor) |
LMTS-S |
|
Position Feedback |
Hall Effect Encoder (Two-Phase) Input, 5v |
Encoder Feedback |
500 Hz |
Position Counter |
32 bit |
Operation Mode |
Position, Speed, Action Cycle |
Acceleration And |
Trapezoidal |
Motor Connector (Dsub26 Type) Open-Loop Control Is M8/8pin Type |
|
Motor Drive Output |
DC Two-Phase Type |
Quadrature Encoder |
Differential |
Limit Switch Input |
Positive Limit, 0 Point Limit |
Encoder Power Supply |
DC 5V |
Front Panel Controls |
|
Motion Control Paddle |
Single Pole Double |
Input Power Requirements |
|
Voltage |
12V Regulated DC |
Maximum Output |
1.5A (Max) |

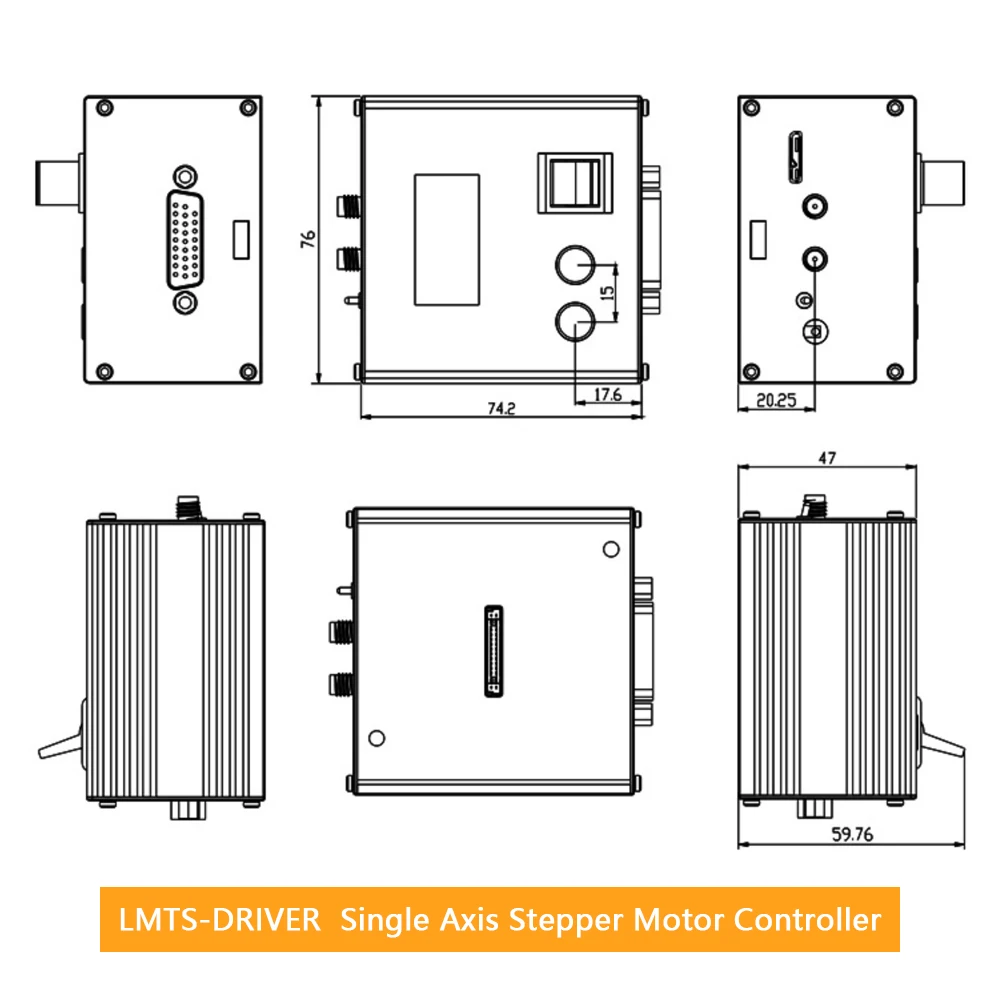

Shell Size (Excluding Buttons) |
76.1*74.2*46.9mm |
Weight |
183.4g |
Characteristic
Electric Translation Platform :
►This series of linear platform products is suitable for low speed, high-precision, and medium load motion positioning situations;
►Travel range from 25mm to 100mm (1 to 4 '');
►The maximum operating speed is 14mm/s;
►The load capacity reaches 5kg in the horizontal direction and 1.25kg in the vertical direction;

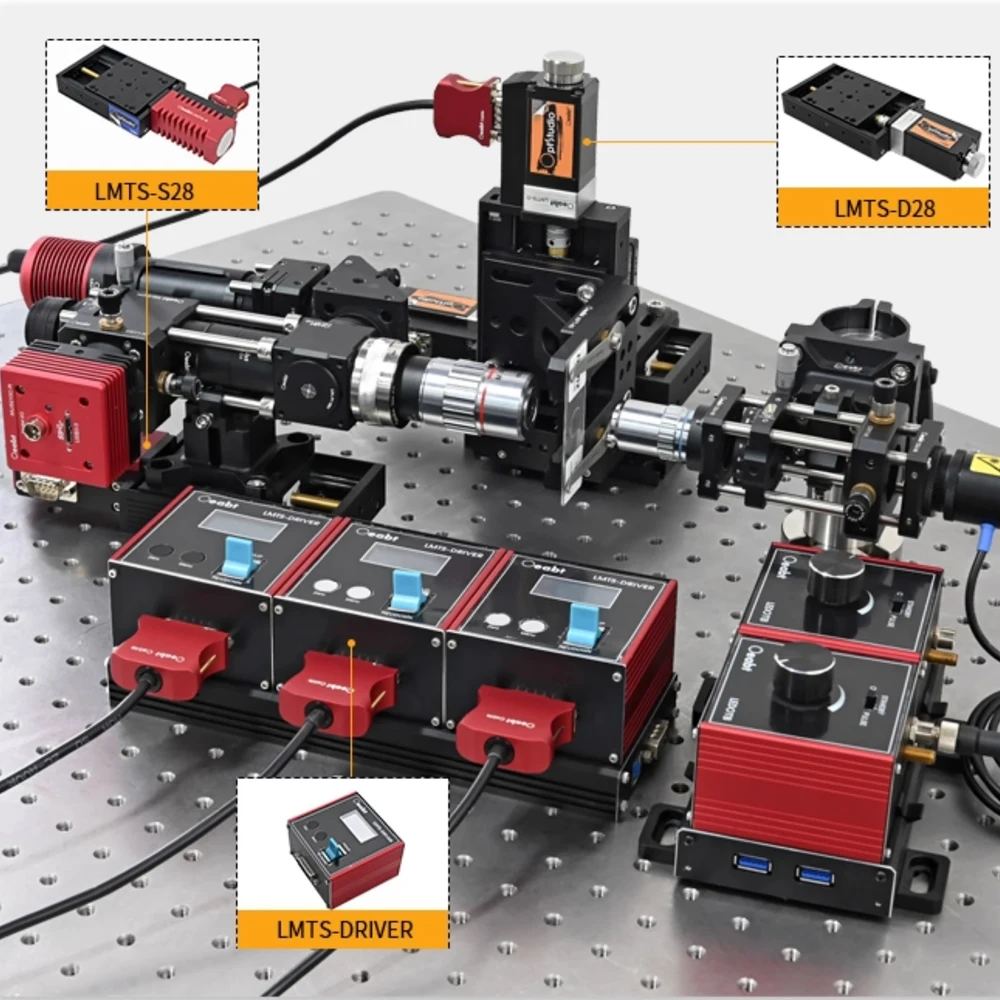

►Convenient for loading combination XY, XZ, XYZ and other axial two - and three-axis motion platforms;
►Drive type:

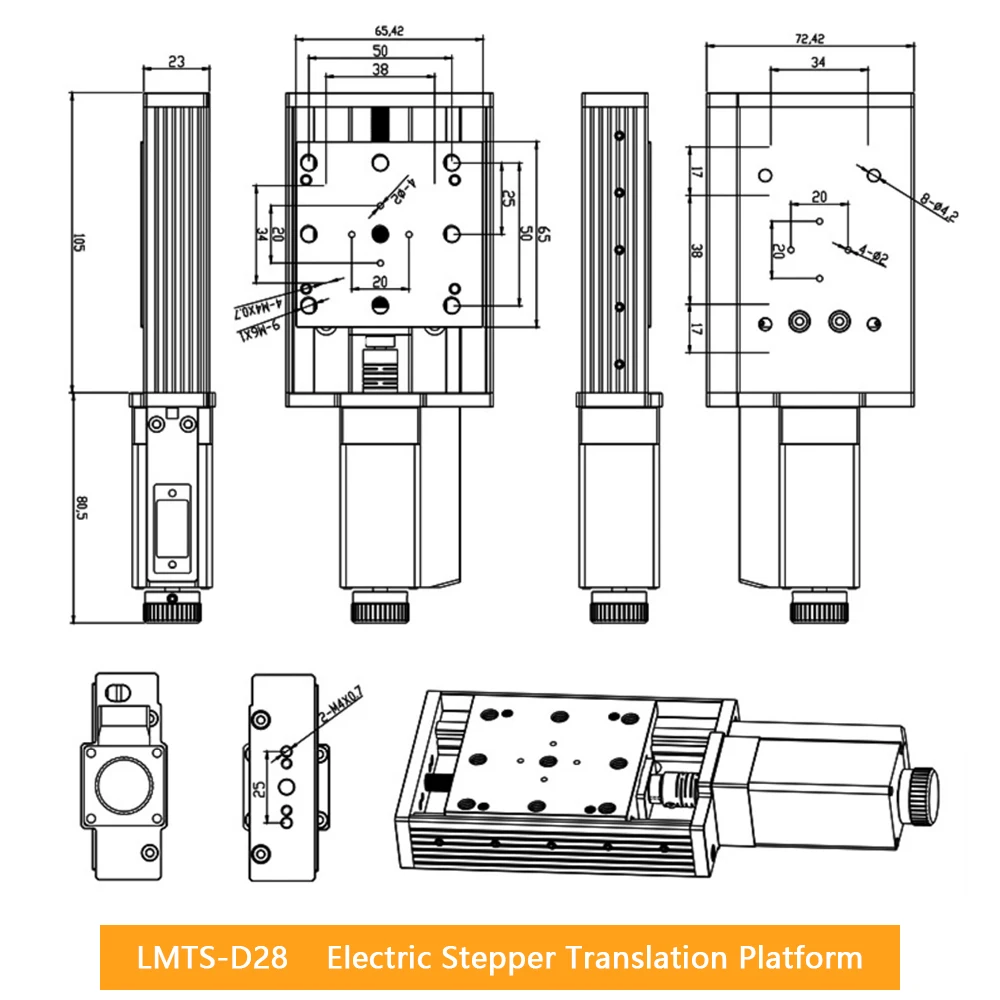

LMTS-D28: Double drive type with manual feed knob on the stepper motor shaft;
LMTS-S28: Micro deceleration stepper motor, higher precision micro feed control, does not support manual feeding;
Single Axis Stepper Motor Controller :
►Suitable for open-loop or closed-loop controllers of electric actuators and electric displacement platforms based on stepper motors;
►Integrated drive control design with built-in TI single chip driver, supporting a maximum current output of 2.5A, with a typical rated current of 1.5A;
►Adopting high-frequency pulse drive, supporting up to 18W motor continuous operation at DC12V;
►Chinese operation menu and paddle type operation handle;
►The C module structure can be quickly assembled on the OPM series power supply and communication bus base or used separately;
Description
(1) The LMTS series linear electric translation platform can provide linear translation of 25-100mm, optimized for applications that require medium load capacity and high resolution, such as measurement and detection. Specially designed for micro stepper applications, it can provide smaller and smoother low-speed movement, with less vibration noise than DC servo motors.
(2) The main platform is supported by four circulating ball carriers accurately installed on the linear guide rail. The circulating ball bearing guide rail and precision trapezoidal threaded screw can achieve smooth and uniform feeding, and adopts a magnetoelectric induction limit switch, which is both sensitive and highly reliable.

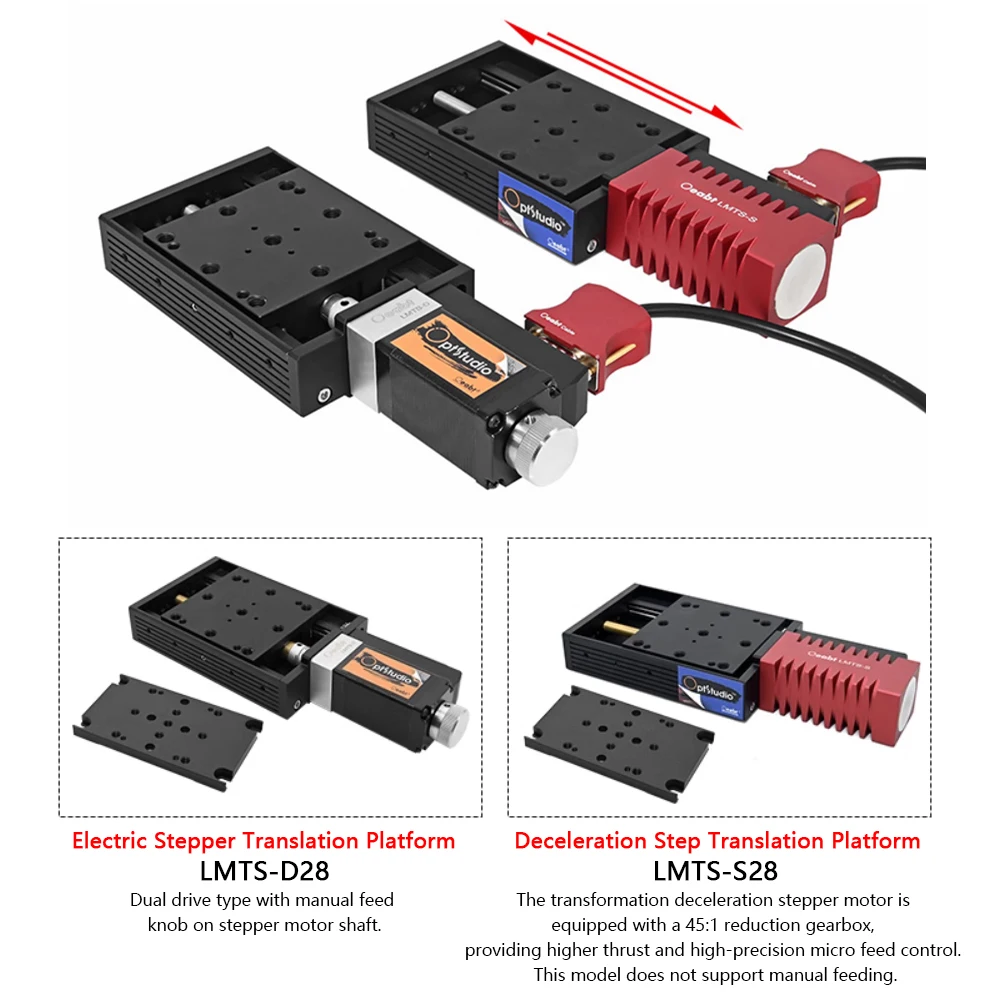

Drive type: Dual drive type (LMTS-D) with manual feed knob on the stepper motor shaft;
The micro deceleration stepper motor is equipped with a 45:1 reduction gearbox, providing higher thrust and high-precision micro feed control. This model does not support manual feeding (LMTS-S);

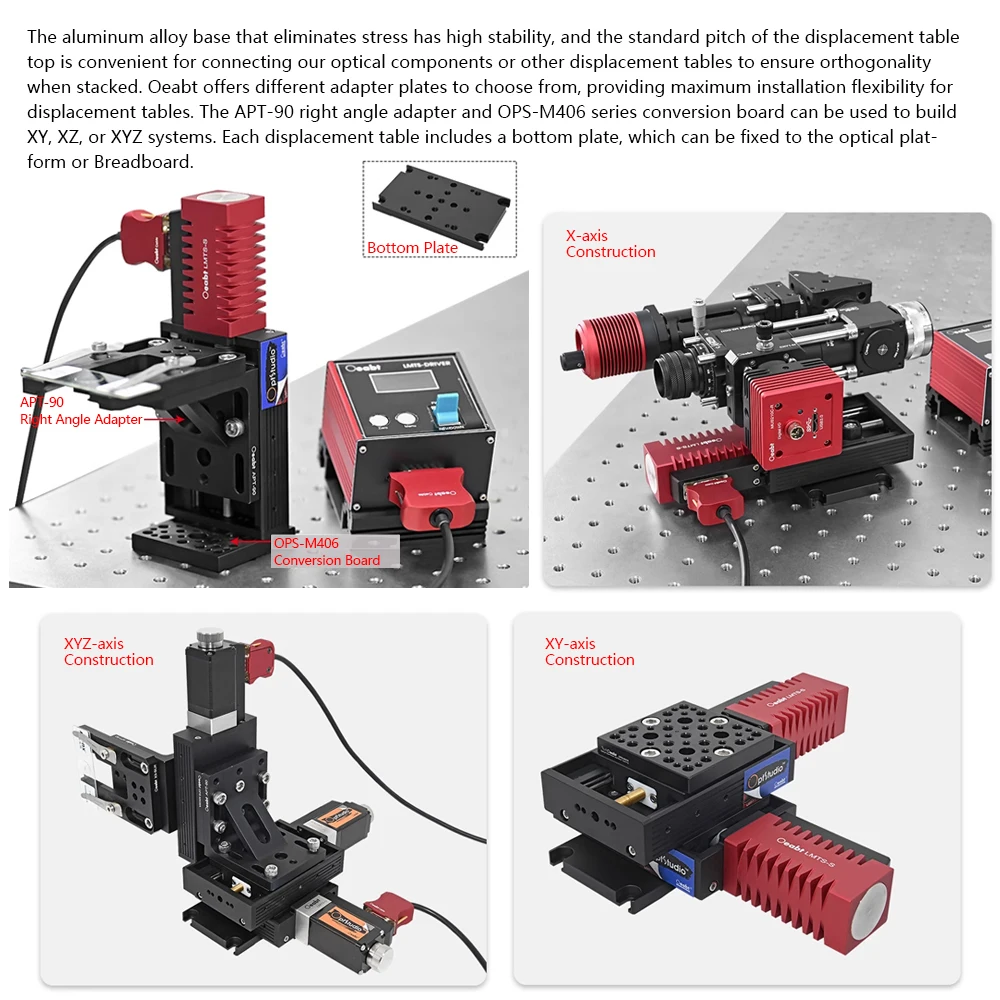

(3) The aluminum alloy base that eliminates stress has high stability, and the standard pitch of the displacement table top is convenient for connecting our optical components or other displacement tables to ensure orthogonality when stacked. OEBT offers different adapter plates to choose from, providing maximum installation flexibility for displacement tables.The APT-90 right angle adapter and OPS-M406 series conversion board can be used to build XY, XZ, or XYZ systems. Each displacement table contains a base plate that can be fixed to an optical platform or bread board.

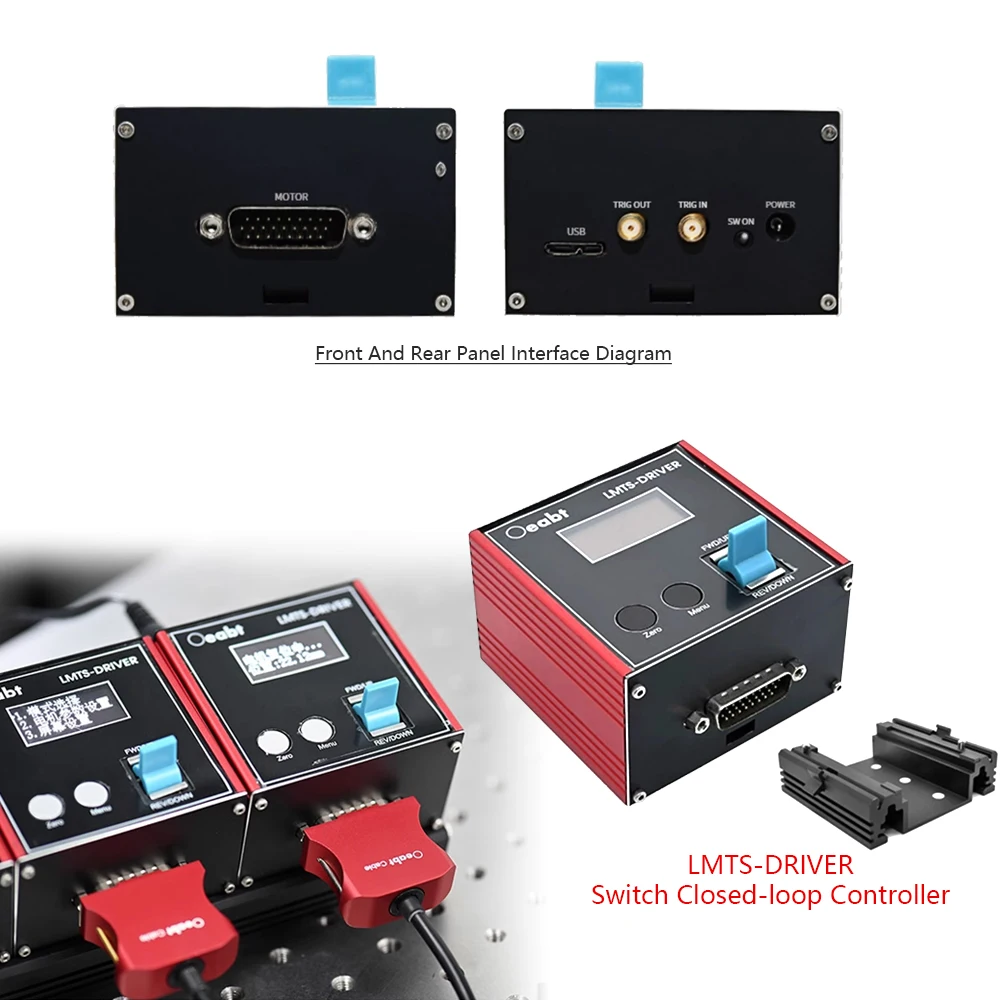

(4) Oeabt LMTS-DRIVER is an open/closed loop controller for electric actuators and electric displacement platforms using stepper motors. This controller can provide simple manual and automatic control methods for low-power stepper motors (up to 18W at DC12V). This controller uses a maximum of 32 subdivision (6400pps) pulse signal for microstep control of the motor, effectively suppressing motor vibration. Equipped with trapezoidal acceleration and deceleration and S-type acceleration and deceleration control modes, and adopting independently developed patented circuits, it can
dynamically monitor the motor's working conditions and automatically adjust the output current. This ensures that the motor can maintain stability during startup, shutdown, and operation, with noise and heat generation controlled at extremely low levels.
(5) The controller adopts a Chinese operation menu and a paddle type operating handle, making it easy to use. The appearance is a mature C module structure of Oeabt, which can be quickly assembled on the OPM series power supply and USB communication base or used separately. Integrated USB communication interface, connected to the computer through this interface. Utilizing Oeabt OPTstudio ™ The integrated motion control software module within the software allows for more convenient manipulation, as well as setting motion scripts for fixed length, fixed point, and fixed trajectory to achieve richer automatic control functions.

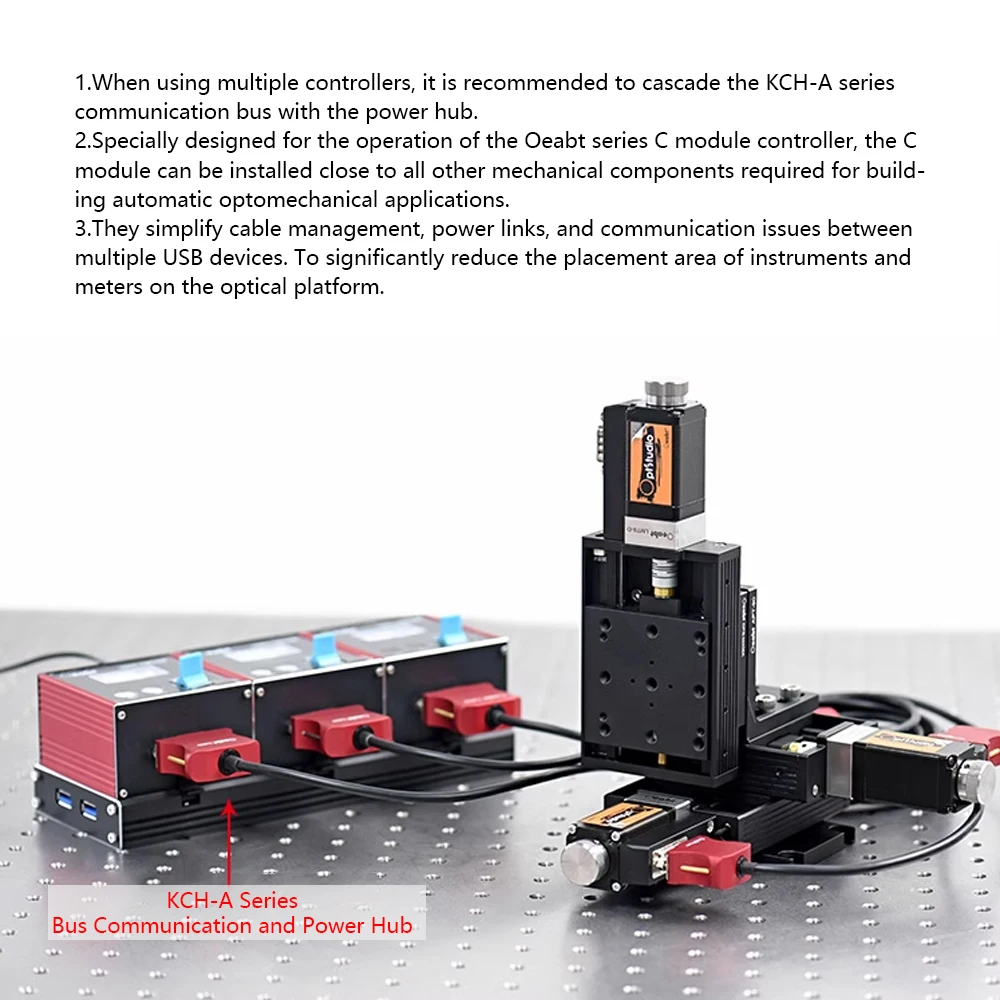

(6) When using multiple controllers, it is recommended to cascade the KCH-A series communication bus with the power hub. Designed specifically for the operation of the Oeabt series C module controller, the C module can be installed close to all other mechanical components required for building automatic optomechanical applications. They simplify cable management, power links, and communication issues between multiple USB devices. To significantly reduce the placement area of instruments and meters on the optical platform.
(7) Attachment of displacement table list: Electric displacement table * 1 (including base plate) Controller list attachment: Single axis controller * 1 (including base), USB cable * 1, DB26 to DB9 connection cable * 1, DC 12V power supply * 1;
